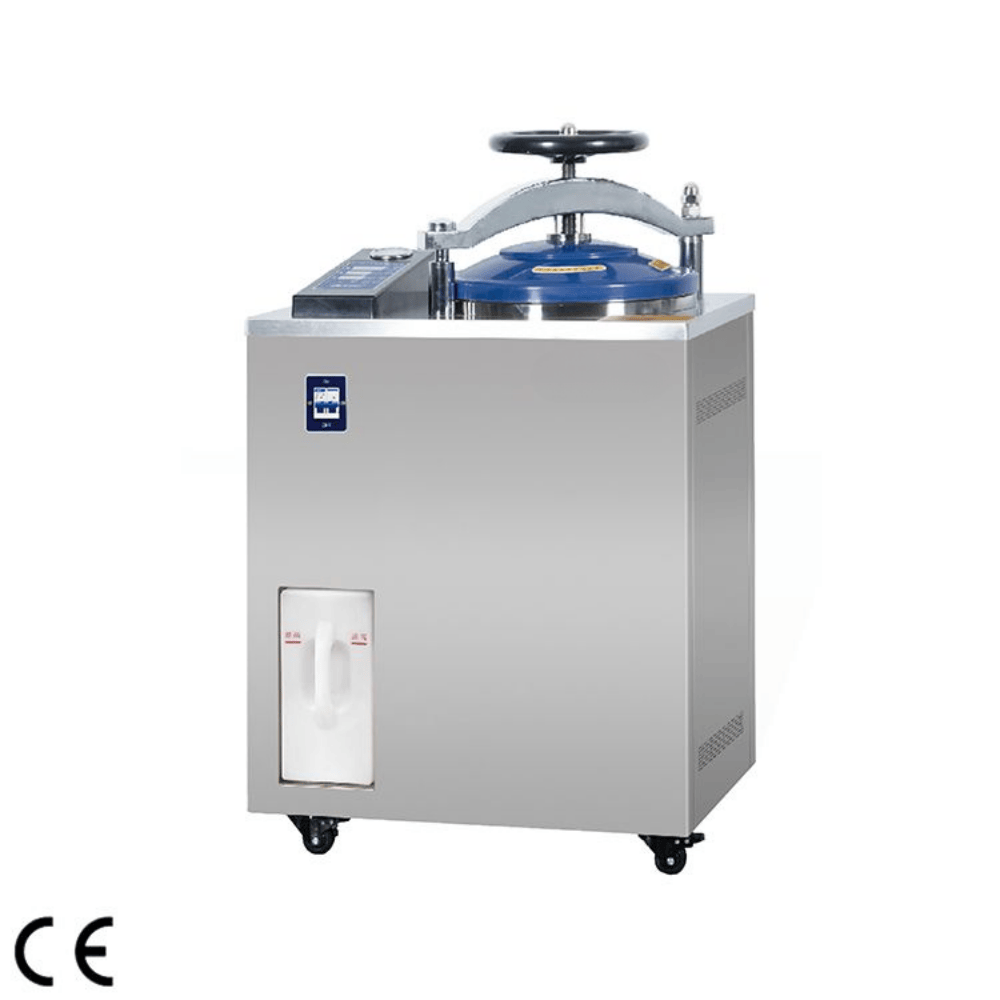

Vertical Class N Autoclave Pressure Steam Sterilizer Automatic Drying Sterilizer, CA-STV-AII Series
- Multifunctional Automatic Internal Cycle With Drying
- Chamber volume: 35L, 50L, 75L, 100L
- Sterilization temperature: 116~134ºC
- Design pressure: 0.25 Mpa
Description
- Hand wheel translation and quick opening structure
- Multi-functional automatic internal cycle with drying
- Internal steam cycle
- High-quality stainless steel material
- Microcomputer automatic control, arbitrary setting of sterilization parameters
- Safety interlocking device
- Digital display and Touch buttons
- Standard test interface
- Self-expanding seal
- With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
- With stainless steel bucket or basket
- The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.
- Buzzer reminder after sterilization, automatic stop.
- Automatic discharge of cold air, automatic steam exhaust after sterilization.
- Optional external printer
- Optional automatic water inlet function
Specifications
| Model | STV-A35II | STV-A50II | STV-A75II | STV-A100II |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220/110V,50/60Hz | |||
| Design pressure | 0.25MPa | |||
| Design temperature | 139℃ | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature | 116℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Drying time setting range | 0~240min | |||
| Chamber volume (mm) | Ø350*400 | Ø350*525 | Ø400*625 | Ø450*650 |
| Basket dimension(mm) | Ø320*350 | Ø320*240*2 | Ø360*280*2 | Ø410*300*2 |
| Outer dimension(mm) | 698*498*940 | 630*500*1180 | 725*525*1170 | 788*588*1255 |
| Package Dimension(W*D*H)(mm) | 760*610*1260 | 800*620*1260 | 840*610*1310 | 870*650*1380 |
| N.W. / G.W. (kg) | 110/143 | 112/145 | 114/166 | 129/179 |
