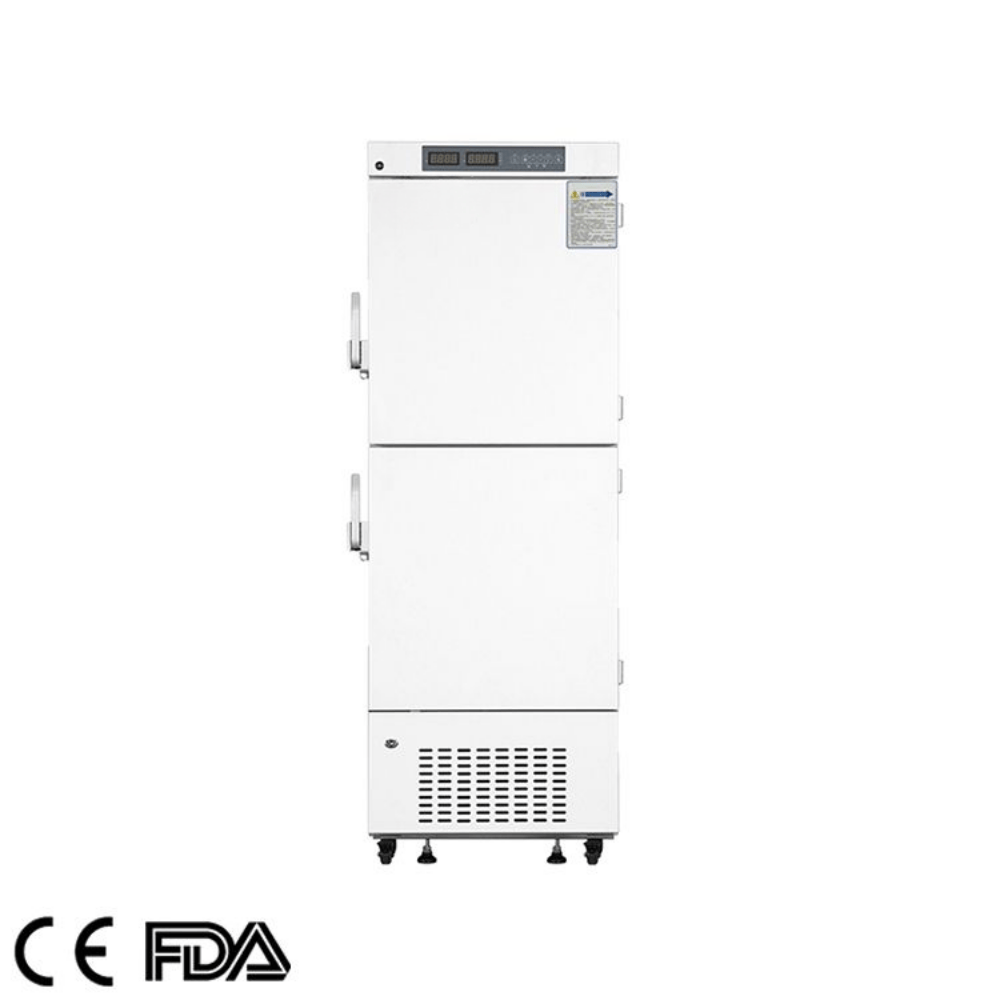

-40℃ Freezer, CA-LF40-360

  1. Capacity(L/cu.ft):358/12.6
  2. Temperature range(℃):-40~-20℃
  3. Advanced Cooling System:High performance compressor, reasonable refrigeration layout, more stable refrigeran
  4. Independent & precise control of 2 chambers:one refrigeration unit can realize independent & precise control of upper and lower chambers
  5. Temperature controller:Microprocessor
  6. Convenient after-sales service:2 years warranty
SKU: CA-LF40-360 Category:

Description

Key Features
Microprocessor control, adjustable temperature range: -40℃ to -20℃
LED digital display and increment range at 0.1℃~1℃.
Permanently lubricated cooling fan for safety and longevity.
Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance.
High density CFC-Free urethane foam insulation.

Reliability
Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
Optimized refrigeration system designed to maximize cooling effect and temperature uniformity.
LED digital display for clear observation,
Wide voltage tolerance design with applicable voltage range of 187-242V/AC.

Ergonomic Design
USB data logging and temperature recorder (optional).
Build-in lock with safety and beauty.
Lockable caster design for customer to move as needed.

Safety
Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
Two types of alarm indications: audible buzzing and visual flashing light.
Corrosion proof cabinet interior design.
Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start delay function would protect device from the damage.

Specifications

Specifications Model LF40-360
Shelf/drawer Shelves/12 drawers
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 5.8
Noise(db) 49
Ambient temperature(℃) 10~32℃
Temperature range(℃) -20~-40℃
Cooling system Compressor brand/QTY CUBIGEL/2
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 310W
Current(A) 3A
Material Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 358/12.6
NW./GW.(kg) 138/178
Exterior size(W×D×H)(mm) 720×830×1870
Interior size(W×D×H)(mm) 466×636×625
Package size(W×D×H)(mm) 780×920×1990
CBM 1.43
20GP/40GP/40HQ 18/39/39
Alarm High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller  failure Y
Low battery /
Condenser clean /
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 8H
Accessories Foot Y
Castor Y
Inside door /
Test hole QTY/diameter 1/25MM
USB port Y
Remote alarm port Optional
