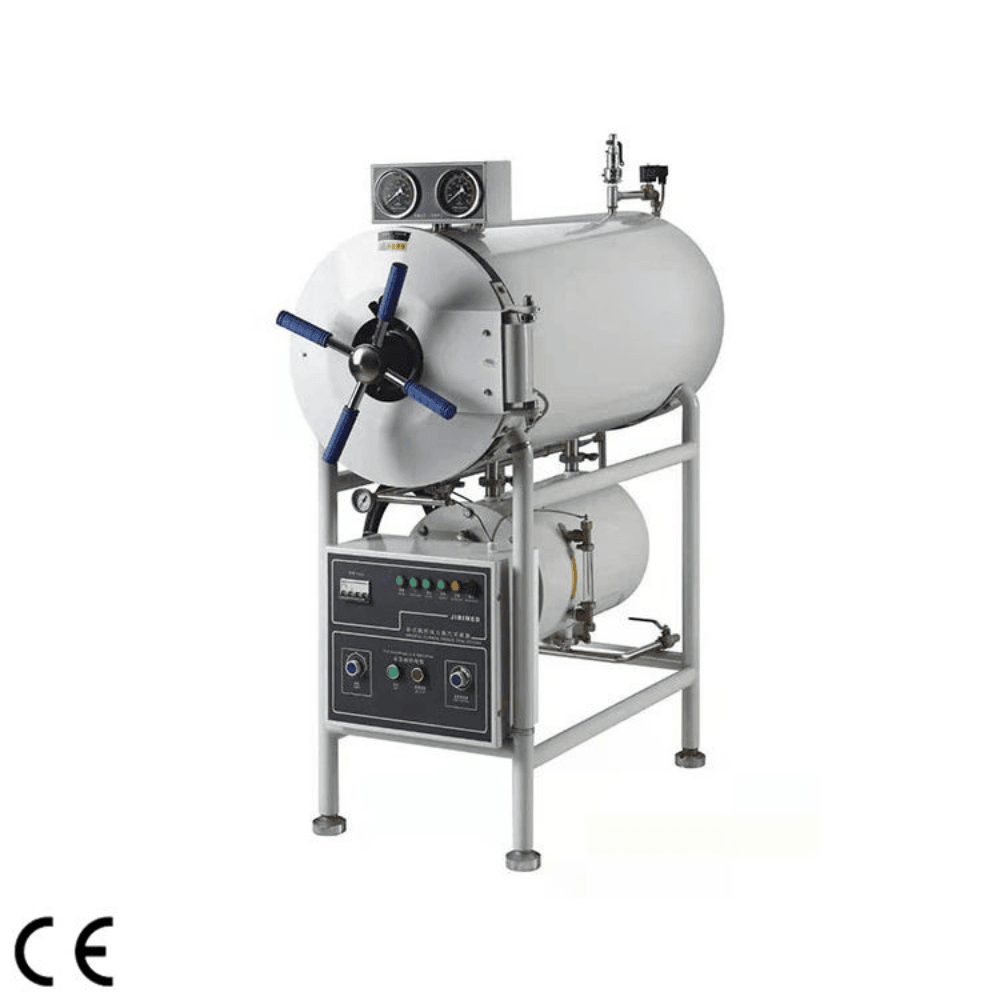

High Capacity Horizontal Cylindrical Pressure Steam Sterilizer Medical Sterilization Machine, CA-STH Series
- Sterilizing Volume: 150L, 200L, 280L, 400L, 500L
- Temp Range: 105℃ – 134℃
- Working Pressure: 0.22MPa
- Time of sterilization and drying: 0-60 min
- Equipped with drying function
Description
Features:
1. Sterilizing course is automatically controlled and easy to operate.
2. With a drying function, suitable for dressing drying.
3. With an over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t start if the door doesn’t close well.
5. The safety valve will open automatically when the inner pressure is over 0.24MPa, and the steam will exhaust to the water tank.
6. The power is automatically cut off, and it will cut off and alarm when the machine is short of water.
7. The chamber of the sterilizer is made of stainless steel.
Specifications
| Technical Data | STH-150 | STH-200 | STH-280 | STH-400 | STH-500 |
| Sterilizing Chamber Volume | 150L φ440×1000mm |
200L φ515×1000mm |
280L φ600×1000mm |
400L Φ700×1100mm |
500L Φ700×1300mm |
| Working Pressure | 0.22MPa | ||||
| Working Temperature | 134℃ | ||||
| Temperature Range | 105℃ – 134℃ | ||||
| Time of Sterilization | 0-60 mins | ||||
| Time of Drying | 0-60 mins | ||||
| Heat Average | ≤±2℃ | ||||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
| Package | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport Dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
