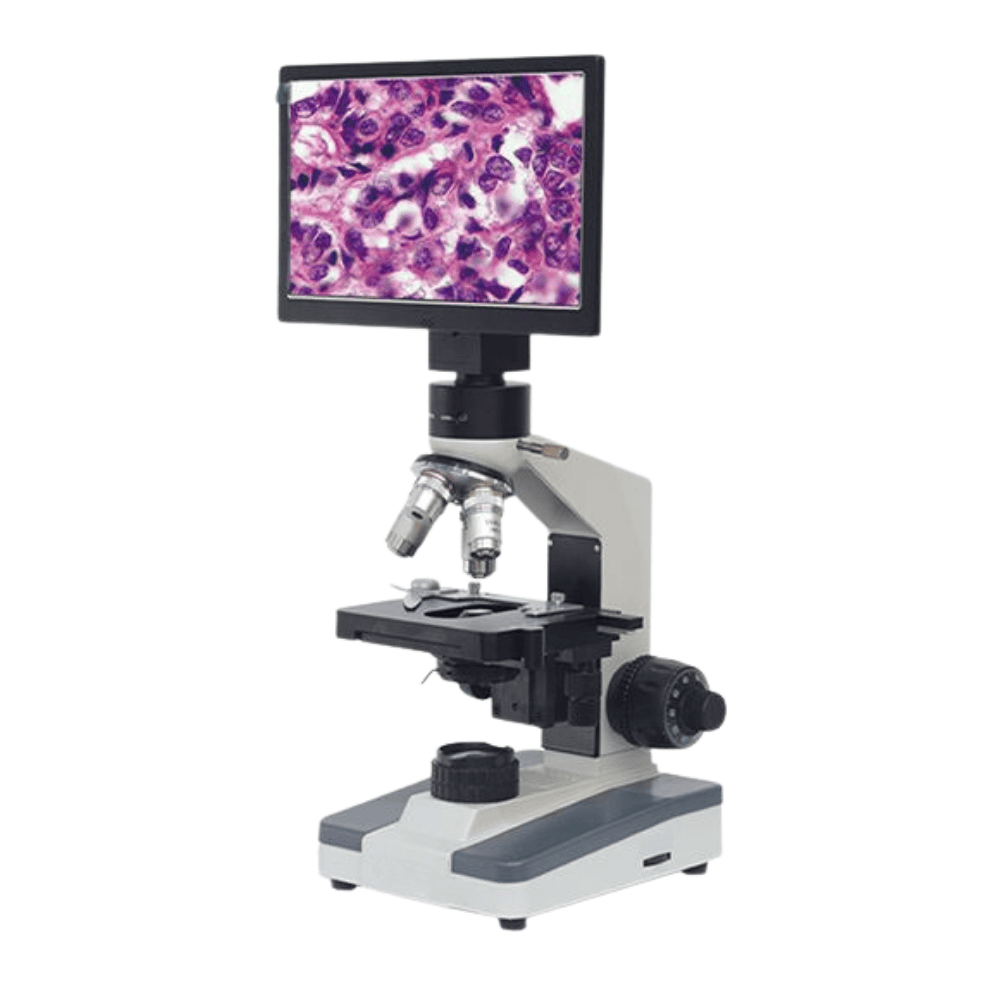

| Model |
MSC-V103 |
| Optics |
Finite Distance Optical System |
| Viewing Head |
10-inch display screen |
| Video Adapter |
C Mount 1X、0.5X |
| Objective |
Plan Achromatic Objective：4×，10×，*20×，40×，100× |
| Nosepiece |
Quadruple Nosepiece/*Quintuple Nosepiece |
| Stage |
Double Layers Mechanical Stage 120X115mm/ 70X30mm |
| Condense |
Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
| Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, |
| Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination |
LED Illumination, Brightness Adjustable |
| *6V 20W halogen lamp, brightness adjustable |
| Electricity |
100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) |
370*260*470 |
| Gross Weight (Kg) |
5 |
| *Optional |
Turret Phase Contrast Kit, Dark Field Attachment; Fluorescent Attachment |
| Microscope Camera/win10 Pad/Digital display |
| *Optional configuration |
