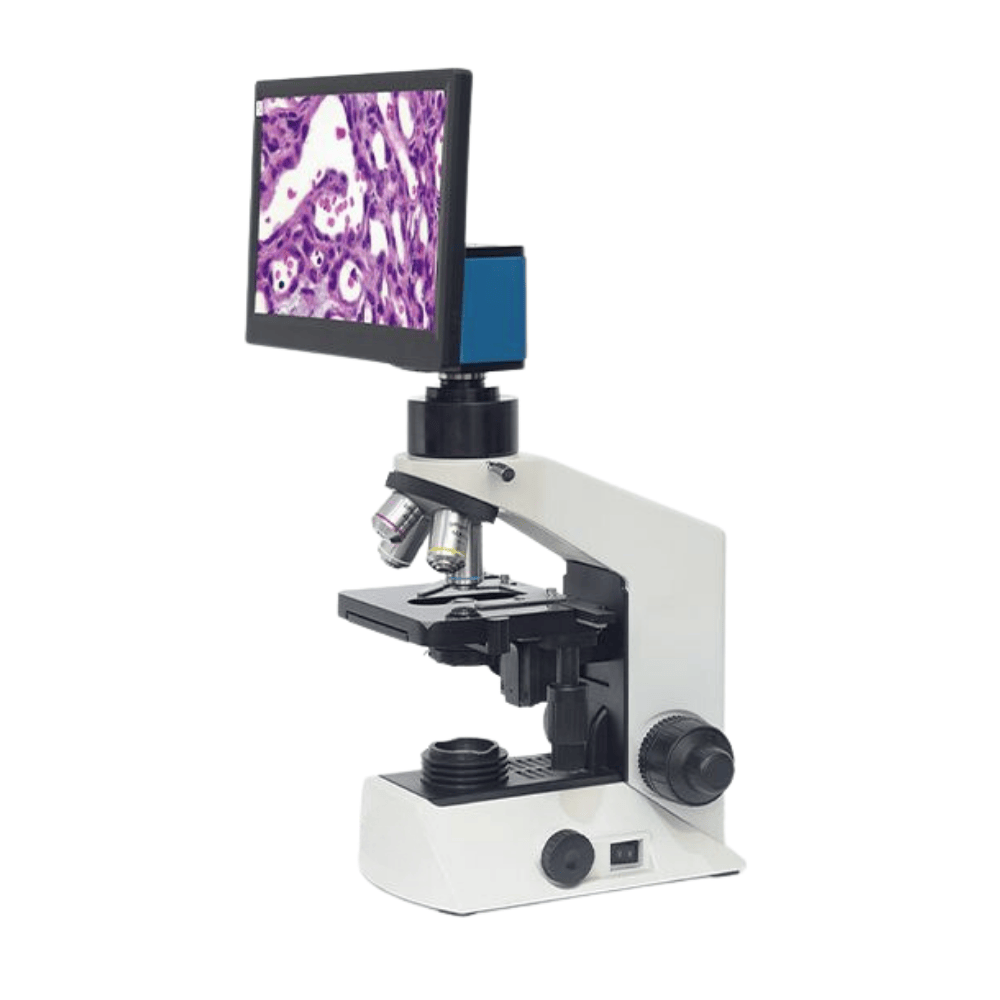

Digital Microscope/ Video Microscope, CA-MSC-V201
- Infinite Optical System
- Infinite Plan Achromatic Objective
Description
Specifications
| Model | MSC-V201 |
| Optical System | Infinity Optical System |
| Viewing Head | 10-inch display screen |
| Video Adapter | C Mount 0.5×/1× |
| Objective | Infinite Plan Achromatic Objective：4×，10×，*20×，40×，100× |
| Nosepiece | Quadruple Nosepiece/*Quintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 140X135mm, range of movement: 75X50mm |
| Condense | Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation,
Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination | 3W LED light, brightness continuously adjustable |
| *6V 20W halogen lamp, brightness adjustable | |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 370*270*470 |
| Gross Weight (Kg) | 7 |
| *Optional | Turret Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment
Microscope Camera/win10 Pad/Digital display |
| *Optional configuration | |
