Description

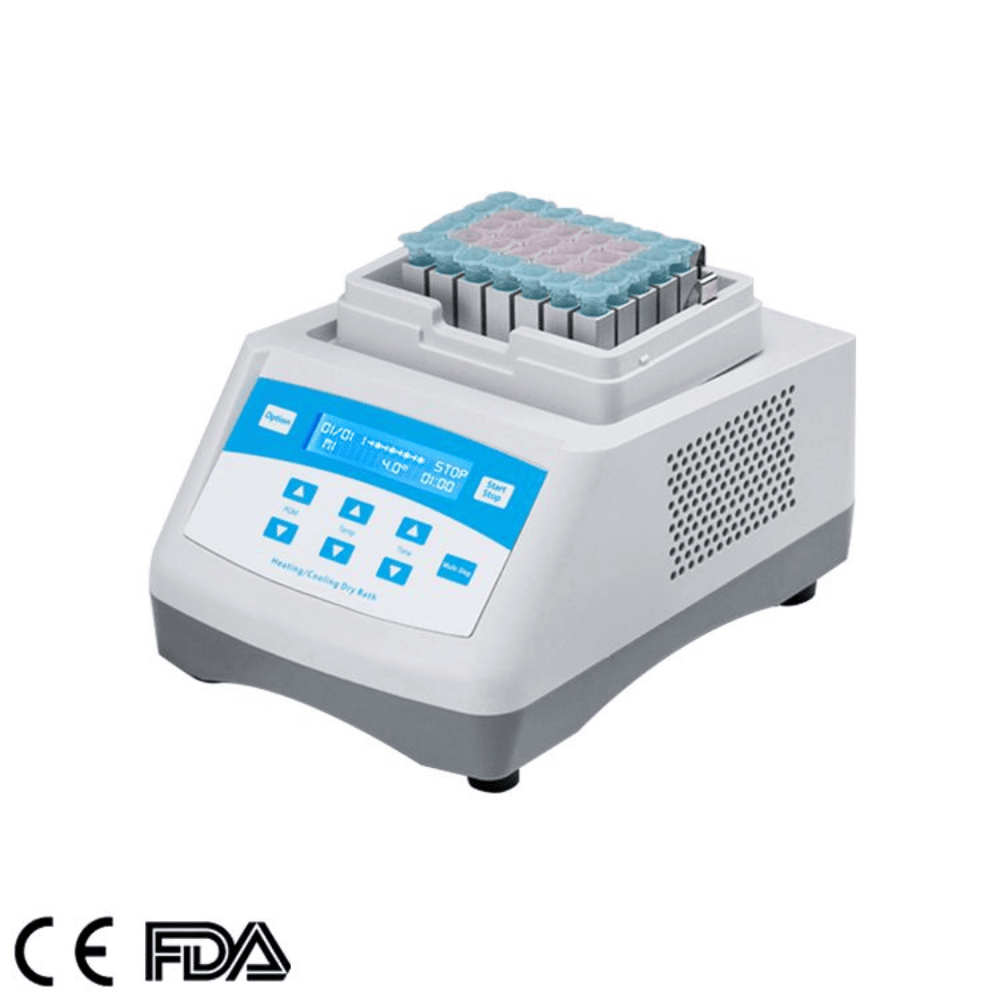

The CA-DBI-100 and CA-DBI-R100 Dry Bath Incubator, controlled by a microcomputer, utilizes high-purity aluminum as a heat conduction medium instead of a traditional water bath device. It can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis, denaturation, and serum solidification etc.

1.LCD display. It is easy to set up and use.

2.Different blocks for a wide variety of tube sizes.

3.Easy replacement, cleaning and disinfecting of metal blocks.

4.Automatic fault detection and buzzer alarm function.

5.Built-in over-temperature protection.

6.Temperature calibration function.

Specifications

Project Parameters
Product model CA-DBI-100 CA-DBI-R100
Temp setting range 0℃~100℃  -10℃~100℃
 Temp control range RT+5℃~100℃ RT- 30℃~100℃
 Time range  1min ~ 99h59min/∞
 Temp accuracy  ≤±0.3℃
 Display accuracy  0.1℃
 Temp uniformity  ≤±0.3℃
Heating time ≤12min(from 25℃ to 100℃) ≤12min(from 25℃ to 100℃)
Cooling time — — ≤10min(from 100℃ to 25℃)
Cooling time — — ≤25min(from RT to RT-30℃)
Storage at 4℃ — — Yes
Multi points running  Yes（Max 5 points）
Multi cycle  Yes（Max 99 times）
Auto running Yes
Auto heating  Yes
Auto resume to run  Yes
Capacity  See optional block
 Power  150W
Power input AC110 or AC220V / 50-60HZ AC100~240V, 50/60Hz
Fuse 250V  3A  Ф5×20
Size 260x195x150mm
Weight 2.5Kg 4.5Kg

Optional Blocks:

Type Test tube and aperture
MD30 96×0.2ml
MD31 54×0.5ml
MD32 35×1.5ml
MD33 35×2.0ml
MD34 15×0.5ml+20×1.5ml
MD35 96×0.2ml(elisa plate)


MD36 24×5ml
MD37 15×10ml
MD38 12×15ml
MD39 6×50ml(round-shape bottom)
6x50ml(cone-shape bottom)
MD39-S 24×5ml
