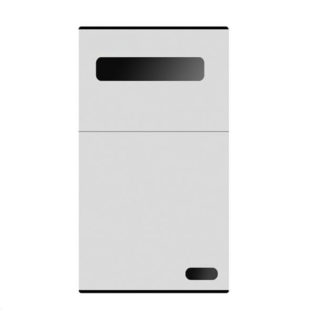

Gel Imaging System, CA-GEP-GD600, GEP-GD600MF
- High QE: >75%
- Pixel Size: 4.54μm×4.54μm
- Exposure: 1ms-120min
- Bit: 16 bit (0-65535)
Description
It is a highly integrated cryogenic scientific research ultrasensitive CCD camera and wide aperture lens. It has high sensitivity and is very easy to operate.
Features
Fully automatic control of the lens and light source.
Precise automatic exposure in calculate, no need to repeat calculation of the exposure time.
One button shooting, marker, and chemiluminescence image automatic stacking.
Cryogenic scientific research ultra-sensitive CCD camera, wide aperture lens.
Product performance
Chemiluminescence imaging compared with X-ray Film , exposure time 30s , Chemiluminescence imaging’ s linear range is better then X-ray film and it has ultrahigh sensitivity, you can capture the weak signal.
Specifications
| Model | GEP-GD600 | GEP-GD600MF | |
| Pixel | 6.0MP | ||
| Multi-color Fluorescent Function | No | Yes | |
| Cooling Temperature | -65°C | ||
| Photosensitive Efficiency | High QE: >75% | ||
| Pixel Size | 4.54μm×4.54μm | ||
| Binning | 1×1 2×2 4×4··· 8×8 | ||
| Exposure | 1ms-120min | ||
| Bit | 16 bit (0-65535) | ||
| OD | ≥4.8OD | ||
| Lens | F = 0.95, 25mm, optionaF= 0.8, 25mm | ||
| UV Transmission | 302nm, Area:21*21cm | ||
| Lighting | LED | ||
| UV Reflection | No | ||
| Filter Wheel | Optional 2,5 position filter wheel | ||
| Filter | Optional 590nm, Other options | ||
| Imaging Area | 20*20cm | ||
| APP Timer Shut Down | 1 ~ 60min | ||
| Dimension | 380*405*695mm | ||
| N.W./G.W. | 35.8kg/38.5kg | 37kg/40kg | |
| Package Dimension (W*D*H)(mm) | 540*510*830mm | ||
