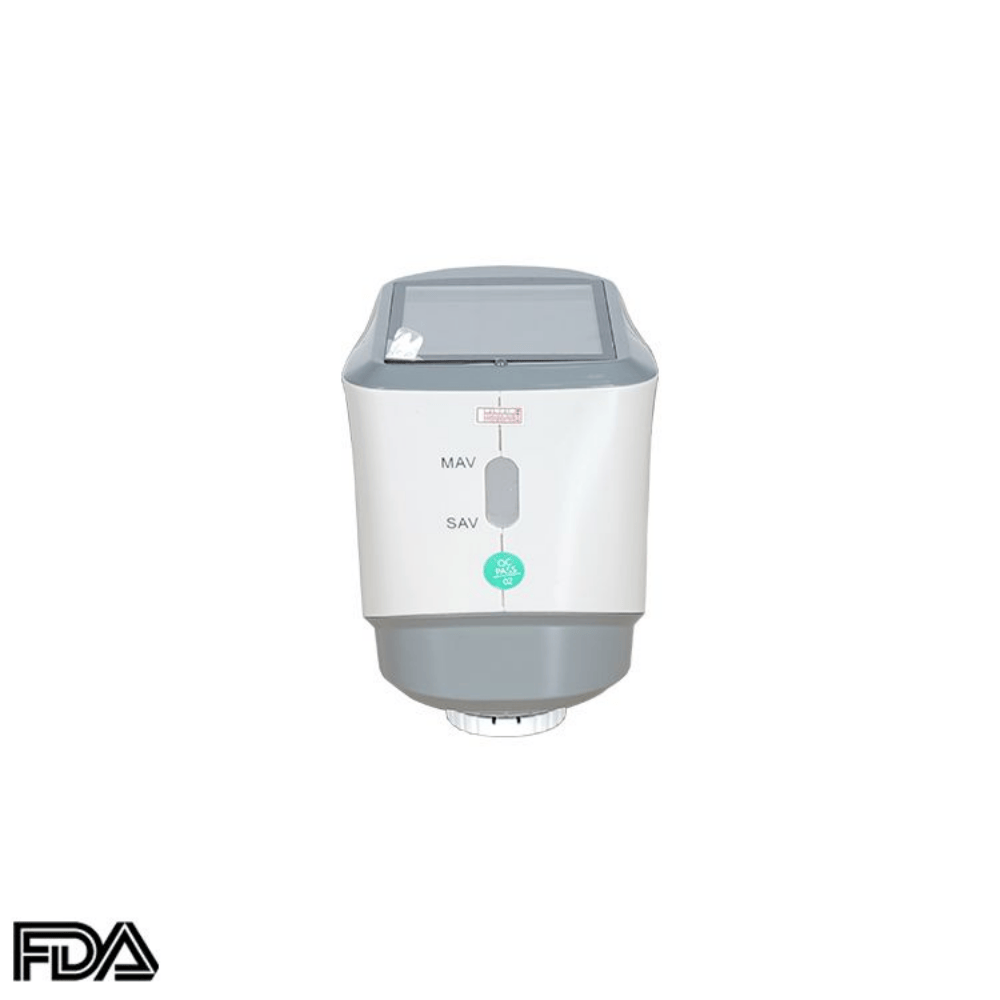

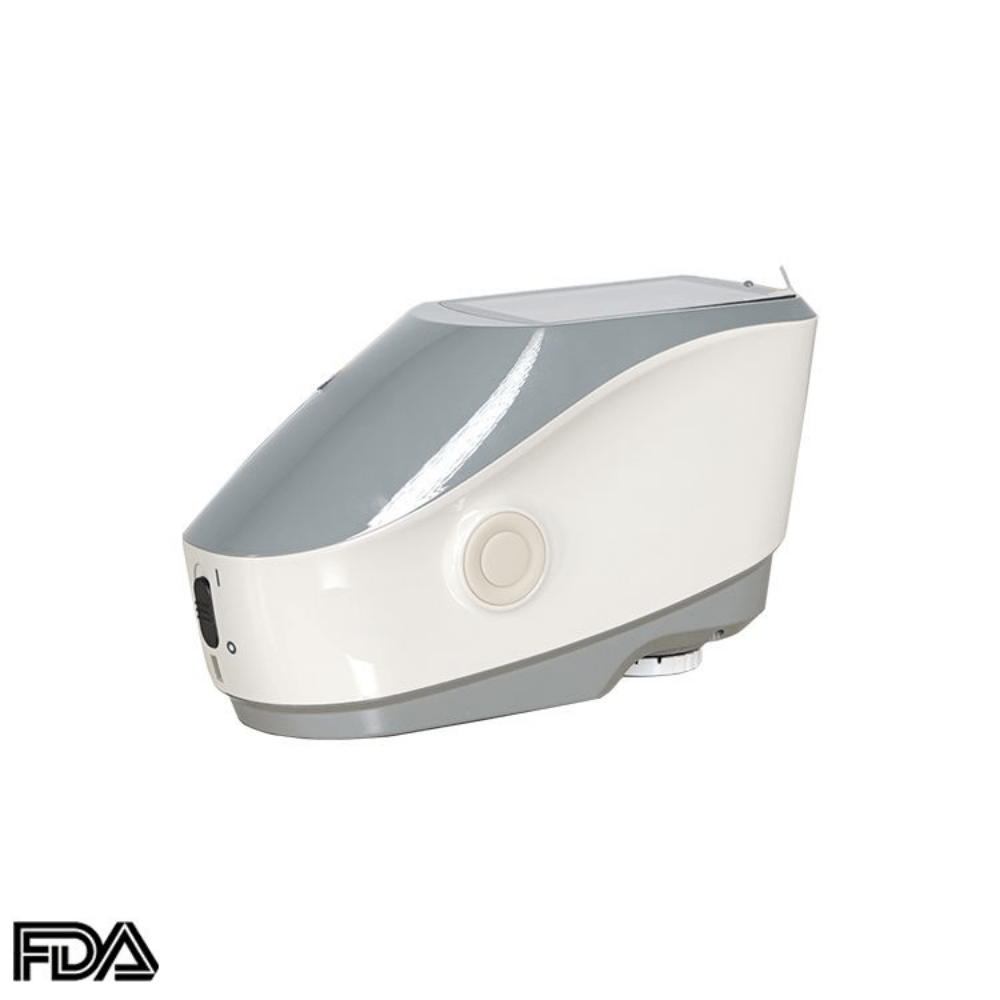

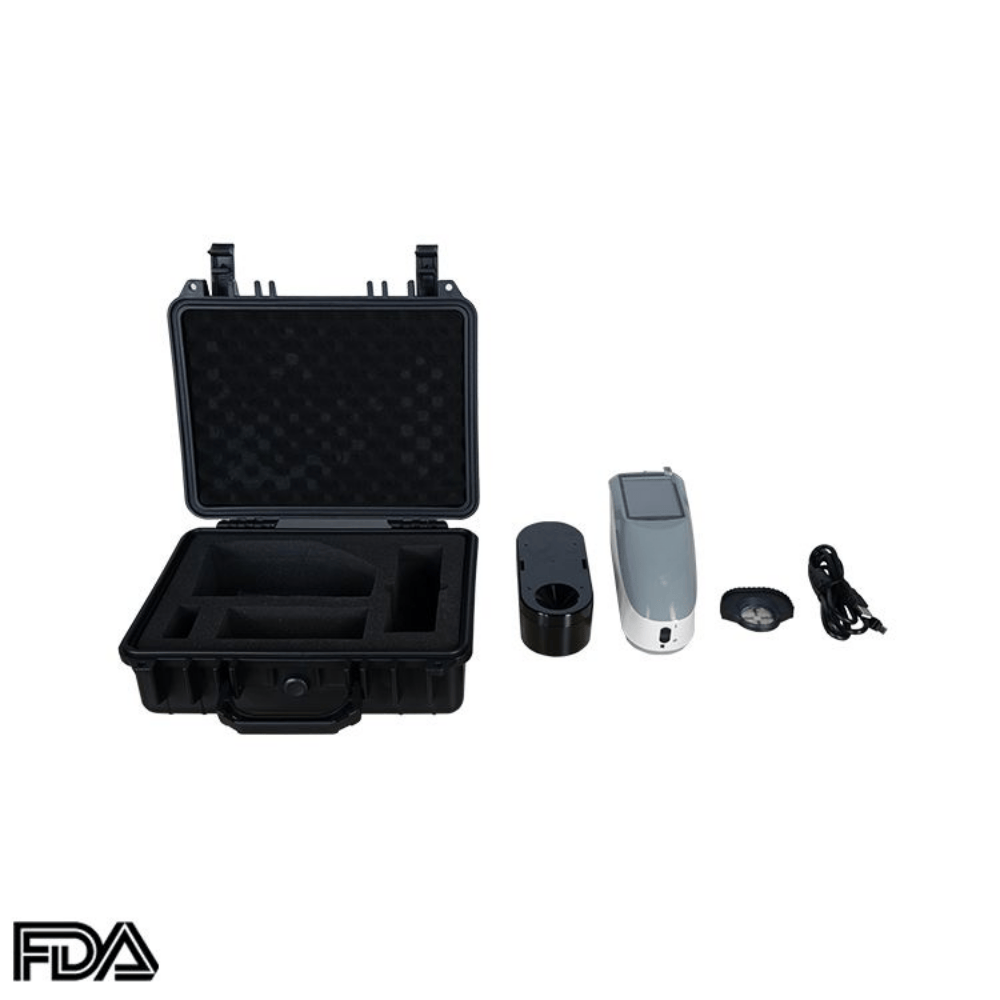

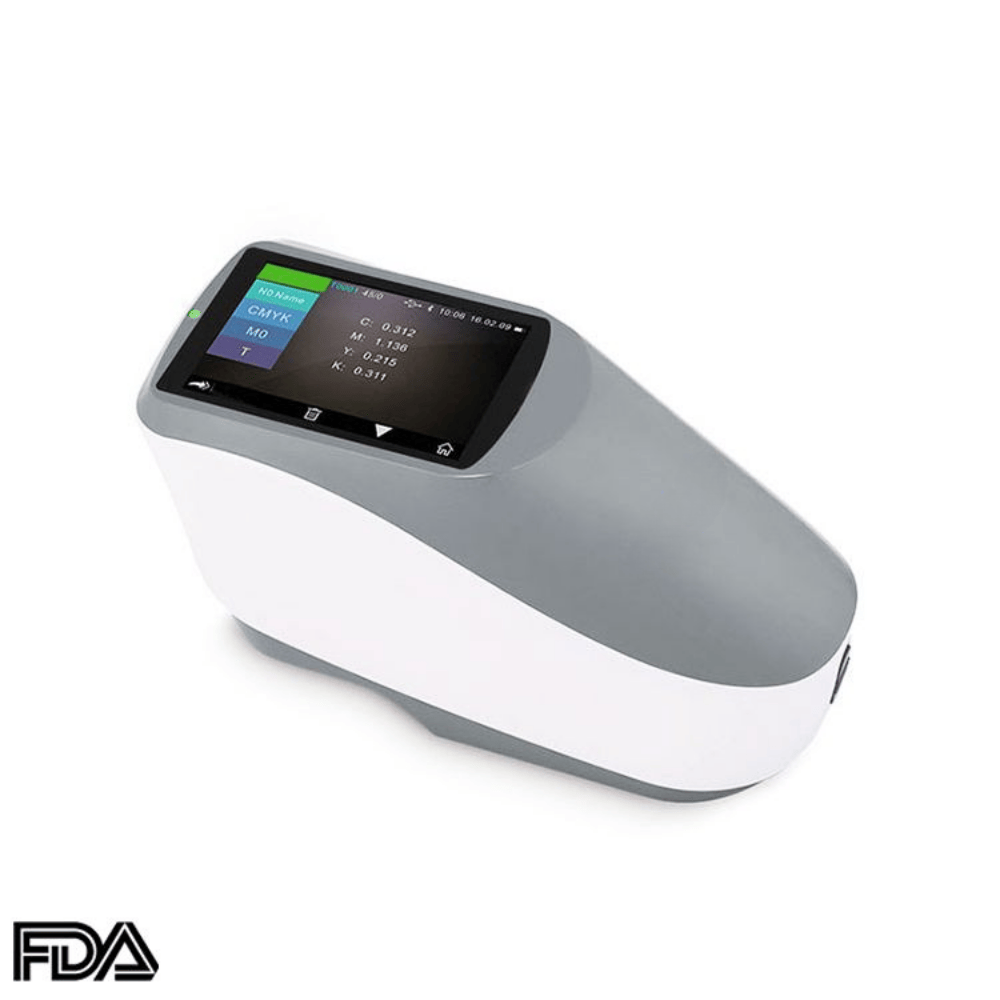

Portable Spectrophotometer Analyzer Colorimeter, Grating Spectrodensitometer, CA-SP-CLD501
- Apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries
- Wavelength Range: 400~700nm
- Density Standards: ISO Status A, E, I, T
- Combined LED light sources
Description
1. Perfect combination of the beautiful appearance and the ergonomic structure design;
2. Combined LED light sources with long life and low power consumption, including UV light;
3. Optional apertures: Φ2/4/8mm, adapt to more samples;
4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;
5. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;
6. Two standard observer angles: 2/10, multiple light source modes and color systems;
7. USB mode is widely useful;
8. Large-capacity storage space, over 10,000 test data;
9. Especially suitable for process control and quality control of printing plants;
10. PC software has powerful function expansion.
Specifications
| Model | CA-SP-CLD501 |
| Measurement Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 |
| Features | Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Measurement Conditions | Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter) |
| Density Standards | ISO Status A, E, I, T |
| Density index | Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level |
| Measurement aperture | Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*00 |
| Other Colorimetric Index | / |
| Observer Angle | 2°/10° |
| Illuminants | A,C,D50,D55,D65,D75,F2,F7,F11,F12 |
| Measurement Time | About 1.5s |
| Repeatability | Density: Within 0.01 D |
| Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3 |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Package Dimension (W*D*H) | 360*170*320mm |
| G.W. | 3kg |
| Power source | Li-ion battery. 5000 me |
