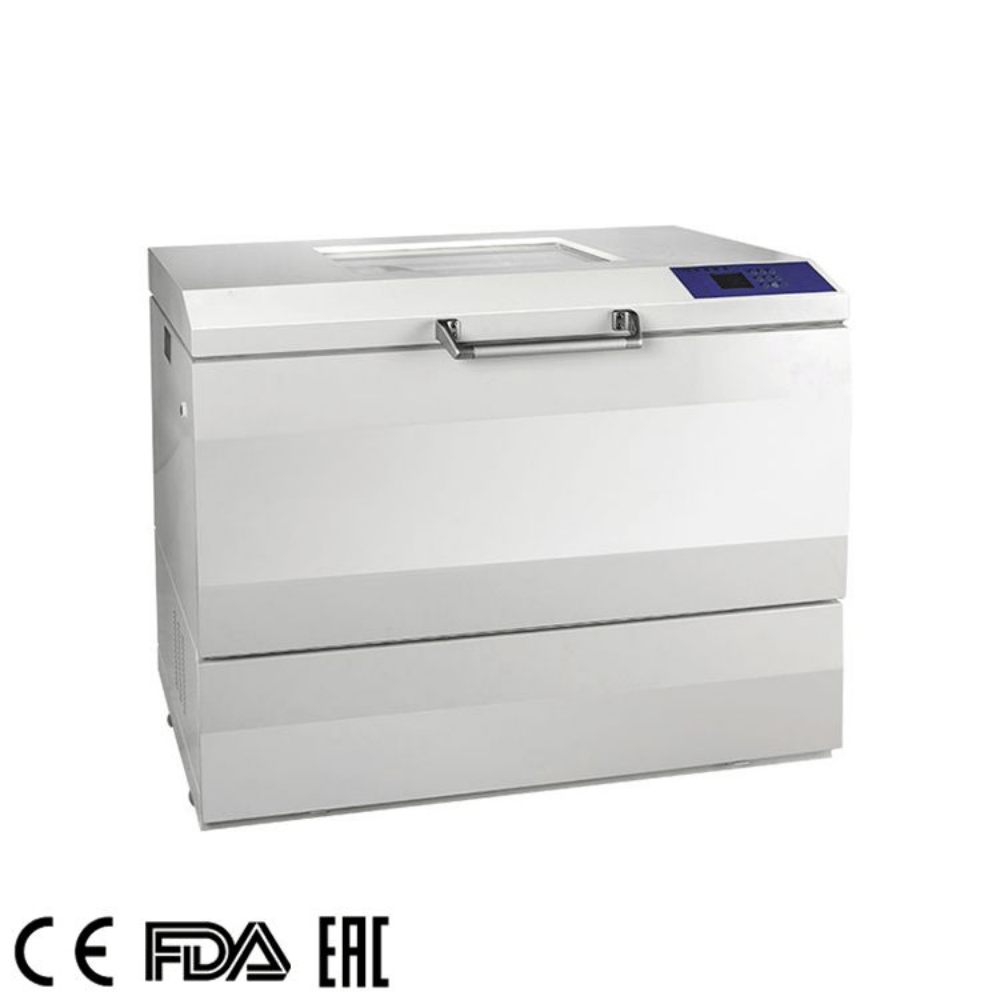

Horizontal Shaking Incubators With UV Sterilizer and Large LCD Screen, CA-ICB-SH Series
- Shaking Speed(rpm): 20-300
- Speed Accuracy(rpm): ±1
- Swing Amplitude(mm): Ф26
- Standard Configuration: 500ml×28, 2000ml×12
Description
Features：
1. Integrated with incubator and shaker to save space and cost.
2. High quality steel shell, polished stainless steel chamber.
3. Large LCD screen to display temperature and shaking speed.
4. With operation data memory function to eliminate faulty operation.
5. Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
6. Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7. Brushless DC motor, more stable and reliable.
8. With UV Sterilizer
9. Equipped with leakage protection
Specifications
| Model | CA-ICB-SH265 | CA-ICB-SH265R | |
| Capacity(L) | 155 | 265 | |
| Circulation | Forced convection | ||
| Shake Mode | Convolution | ||
| Orbit Diameter(mm) | Ф26 | ||
| Cyclotron Frequency | Range (rpm/min) | 20-300 | |
| Resolution (rpm) | ±1 | ||
| Temperature | Range (℃) | 4-60 (Cooling) | |
| Resolution (℃) | ±0.1 | ||
| Uniformity (℃) | ±1 | ||
| Dimension(W*D*H) | External (mm) | 1200*740*800 | 1200*740*1000 |
| Internal(mm) | 970*565*280 | 970*565*480 | |
| Flask Clamp | Max. Capacity | 250ml×39 or 500ml×28 or1000ml×18 | 1000ml×18 or 2000ml×12 or 3000ml×8 or 5000ml×6 |
| Standard Capacity | 500ml×28 | 2000ml×12 | |
| Controller | PID Microcomputer | ||
| Control Mode | Fixed value mode , static mode | ||
| Display | Large high efinition LCD | ||
| Timer | 1~9999min (Or continuous operation) | ||
| Refrigerant | R134a (CFC free) | ||
| Defrosting Mode | Automatic | ||
| Safety Device | Self-diagnosis ; visible& audible over temperaure ,abnormal status alarm | ||
| Electricity | Voltage/Frequency(V/Hz) | AC220V±10% , 50-60Hz | |
| Consumption (W) | 866 | 951 | |
| N.W./G.W. (kg) | 210/250 | 220/254 | |
| Shipping Dimension (W*D*H) (mm) | 1330*830*1070 | 1330*830*1260 | |
| Optional | Universal Tray ;Stainless steel flask clamp (50ml,100ml,250ml,500ml,1000ml,,2000ml,3000ml,5000ml available） | ||
