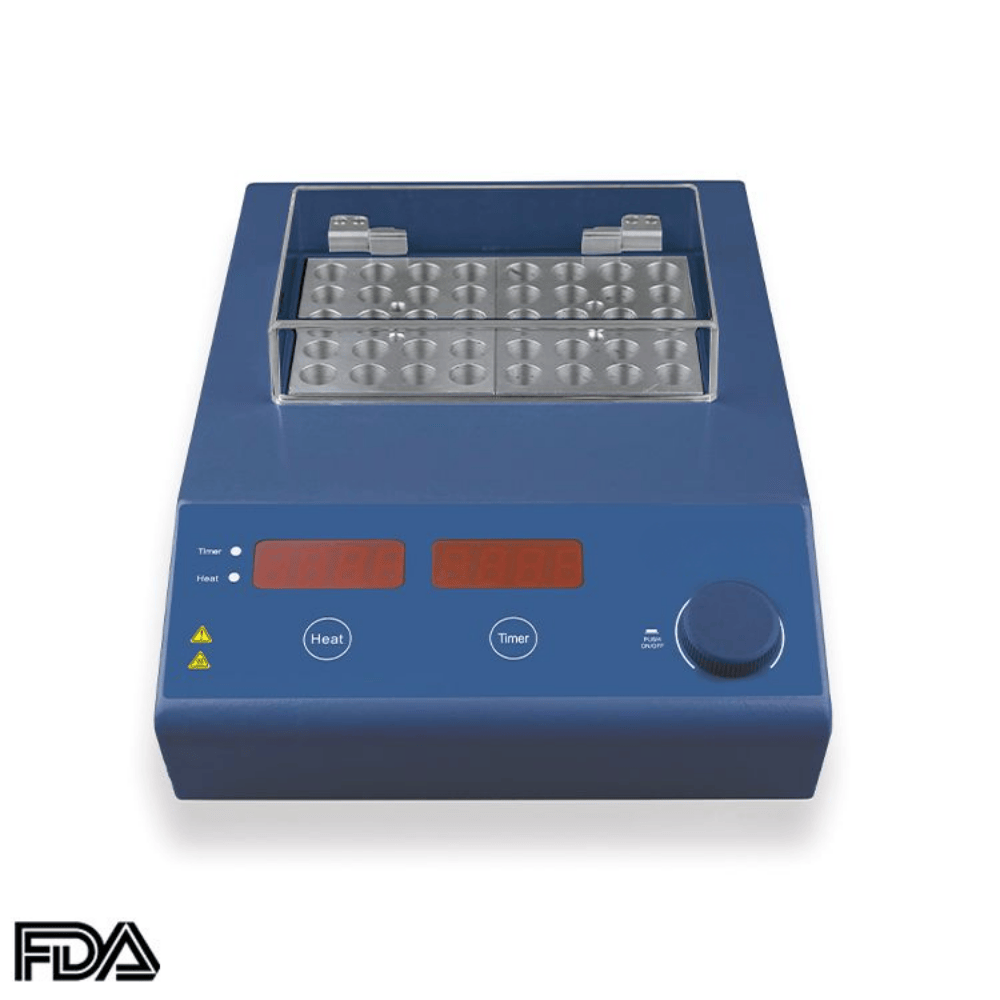

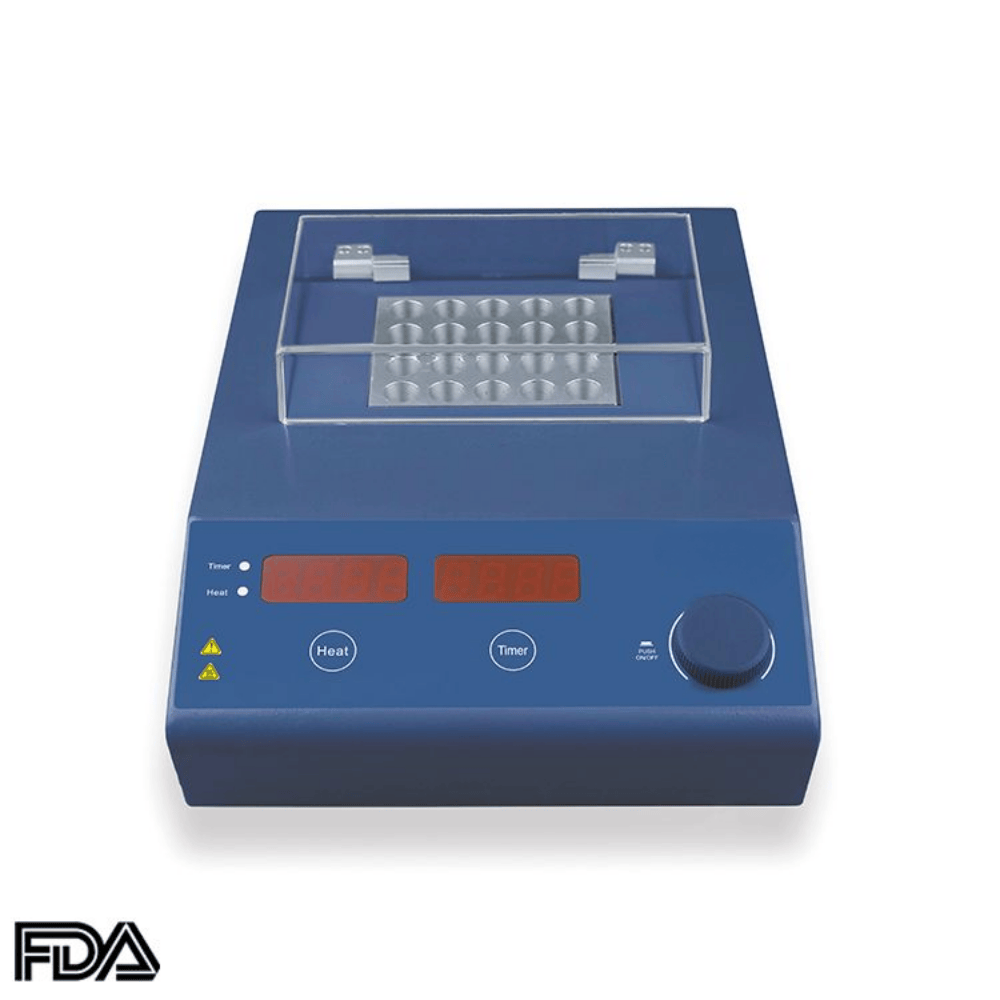

Name: Dry Bath with Sound Reminder Timer for Molecular Biology Laboratory, CA-DBI-1 Series
SKU: CA-DBI-1 Series
Availability: InStock

Description

1. A wide range of temperature control up to 105℃/150℃.

2. Overheating protection.

3. Sound reminder function.

4. External temperature sensor PT1000.

5. Block equipped with a lid for heat preservation and prevent pollution.

6. Knob adjustment is easy to operate.

Specifications

Specifications	DBI-105-1	DBI-105-2	DBI-150-1	DBI-150-2
Temperature range (℃)	Room temp.+5~105	Room temp.+5~105	Room temp.+5~150	Room temp.+5~150
Temperature setting range (℃)	25~105	25~105	25~150	25~150
Temperature control accuracy (℃)	25~90: ±0.3	25~90: ±0.3	25~90: ±0.3	25~90: ±0.3
Temperature control accuracy (℃)	90~105: ±0.6	90~105: ±0.6	90~105: ±0.6	90~105: ±0.6
Temperature uniformity@37℃ (℃)	±0.2	±0.2	±0.2	±0.2
Power (W)	100	200	100	200
Time setting range	0~99h59min	0~99h59min	0~99h59min	0~99h59min
External sensor	Yes	Yes	Yes	Yes
Display	LED	LED	LED	LED
Power supply	110V/220V, 50Hz/60Hz	110V/220V, 50Hz/60Hz	110V/220V, 50Hz/60Hz	110V/220V, 50Hz/60Hz
External dimension (mm)	290×210×120	290×210×120	290×210×120	290×210×120
Weight (kg)	3.2	3.2	3.2	3.2
Operating temperature (℃)	+10~40	+10~40	+10~40	+10~40
Operating humidity (%RH)	< 80	< 80	< 80	< 80

Optional blocks

Cat. No.	Block types	Capacity	Diameter Depth
18900459		30×0.2 mL	6.4 mm 15 mm
18900410		20×0.5 mL	8.2 mm 26.4 mm
18900461		20×1.5 mL	11 mm 24.7 mm
18900462		20×2 mL	11 mm 34.7 mm
18900413		4×50 mL	29.8 mm 48 mm
18900522		Two-in-one block, bead bath/water bath Adapt to S1
18900523		Two-in-one block, bead bath/water bath Adapt to S2
18900520	Aluminum beads
