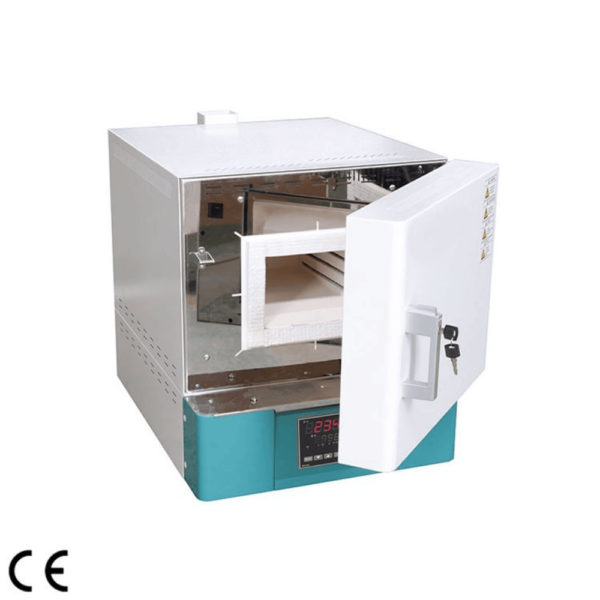

High Precision Ceramic Muffle Furnace with Timer, 100-1200℃ Temp.Range, CA-FNC-BX1200-P Series
- Temperature Max. Temp(℃): 1200
- Accuracy(℃): ±1
- Heating Rate: ≤30min
- Heating mode: Alloy wire heating in three sides left; right; top side
Description
Key Features
P Type，1200°C maximum operating temperature;
High-purity fibrous alumina insulation for maximum energy saving.
PID automatic control via current limiting phase angle fired the resistor, e.g. SCR (Silicon Controlled Rectifier);
Japaness Fuji color LCD 64- segment programmed temperature controller
Safety
Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;
Safety interlock with automatic power off the furnace when door is opened;
Optional
Different chamber size for your choose;
LCD touch screen control for choose
Program software to connect computer for choose.
Content may be subject to modifications or corrections
Specifications
| Model | FNC-BX1200-2P | FNC-BX1200-7P | FNC-BX1200-12P | FNC-BX1200-16P | ||||
| Heating mode | Alloy wire heating in three sides left; right; top side. | |||||||
| Temperature | Max. Temp(℃) | 1200 | ||||||
| Accuracy(℃) | ±1 | |||||||
| Heating Rate | ≤30min | |||||||
| Chamber Dimension(W*D*H)(mm) | 120*200*80 | 200*300*120 | 200*300*200 | 250*400*160 | ||||
| External Size(W*D*H)(mm) | 450*685*600 | 530*785*640 | 530*785*720 | 600*895*700 | ||||
| Capacity(L) | 2 | 7 | 12 | 16 | ||||
| Heating Element | Alloy heating wire | |||||||
| Thermocouple | K type | |||||||
| Chamber Material | Ceramic fiber | |||||||
| Outer shell | cold rolling steel electrostatic spraying exterior | |||||||
| Temp. control mode | Japaness Fuji color LCD 64- segment programmed temperature controller | |||||||
| Electricity | AC220V/6.6A 50/60HZ |
AC220V/13.6A 50/60HZ |
AC220V/20.4A 50/60HZ |
AC380V/9.9A 50/60HZ |
||||
| Max. Consumption | 1.5kW | 3.0kW | 4.5kW | 6.0kW | ||||
