Description

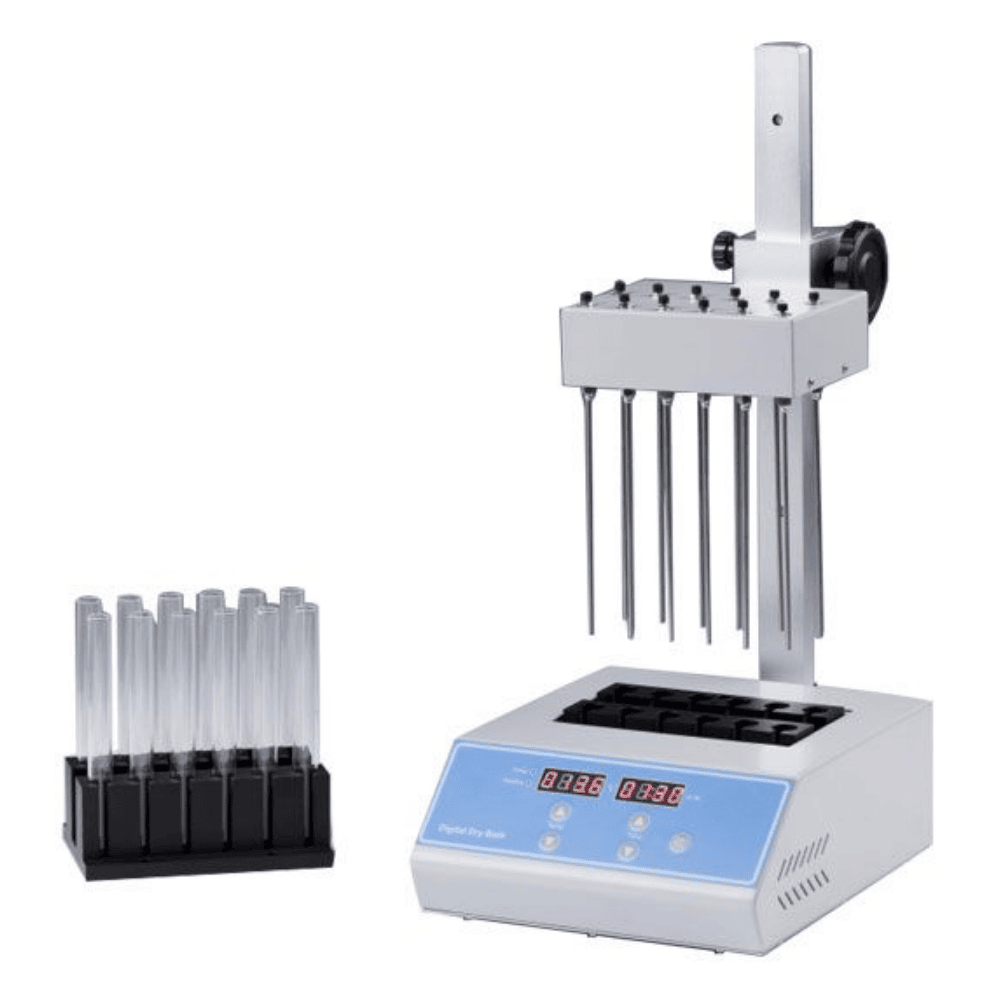

NEC160-1C Nitrogen Evaporator/Sample Concentrator (visible) is a high-precision temperature control instrument with microprocessor-controlled and PID fuzzy-controlled technique. Its working principle is to blow nitrogen rapidly and continuously on the heating surface of the sample. Instead of a traditional water bath device, this adopts a heat-conducting medium, which is high-purity aluminum with good heat transfer. The Test tubes are held in a block, and blowing a large number of samples at one time.
Features
- High precision and wide range of temp. control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- The amount of airflow can be adjusted. With a special slotting-design block, the surface location of concentrated samples can be observed.
- Easy operation; safe and reliable to use.
Specifications
| Model | NEC160-1C |
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time range | 1-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃) |
| Max vertical travel | 200mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.1Mpa |
| Block qty | 1 |
| Max. power | 500W |
| Electricity | AC220V or AC110V /50~60Hz |
| Dimensions | 260*220*475mm |
| Weight | 7.3kg |
Product accessories
| Model | Diameter(mm) | Depth(mm) | Capacity |
| RC02 027 001 | 10.5 | 50 | 12 |
| RC02 027 002 | 12.5 | 50 | 12 |
| RC02 027 003 | 13.5 | 50 | 12 |
| RC02 027 004 | 15.5 | 50 | 12 |
| RC02 027 005 | 16.5 | 50 | 12 |
| RC02 027 006 | 19.5 | 50 | 12 |
| RC02 027 007 | 20.5 | 50 | 12 |
