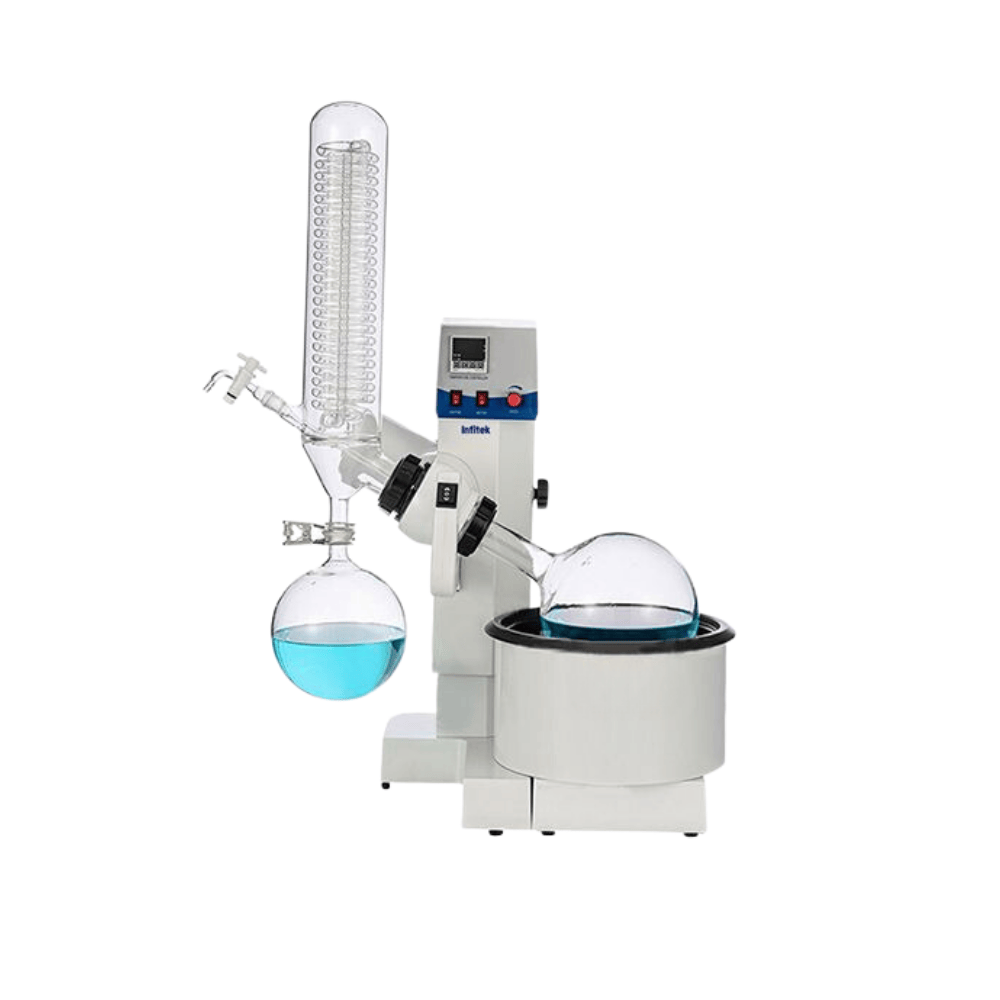

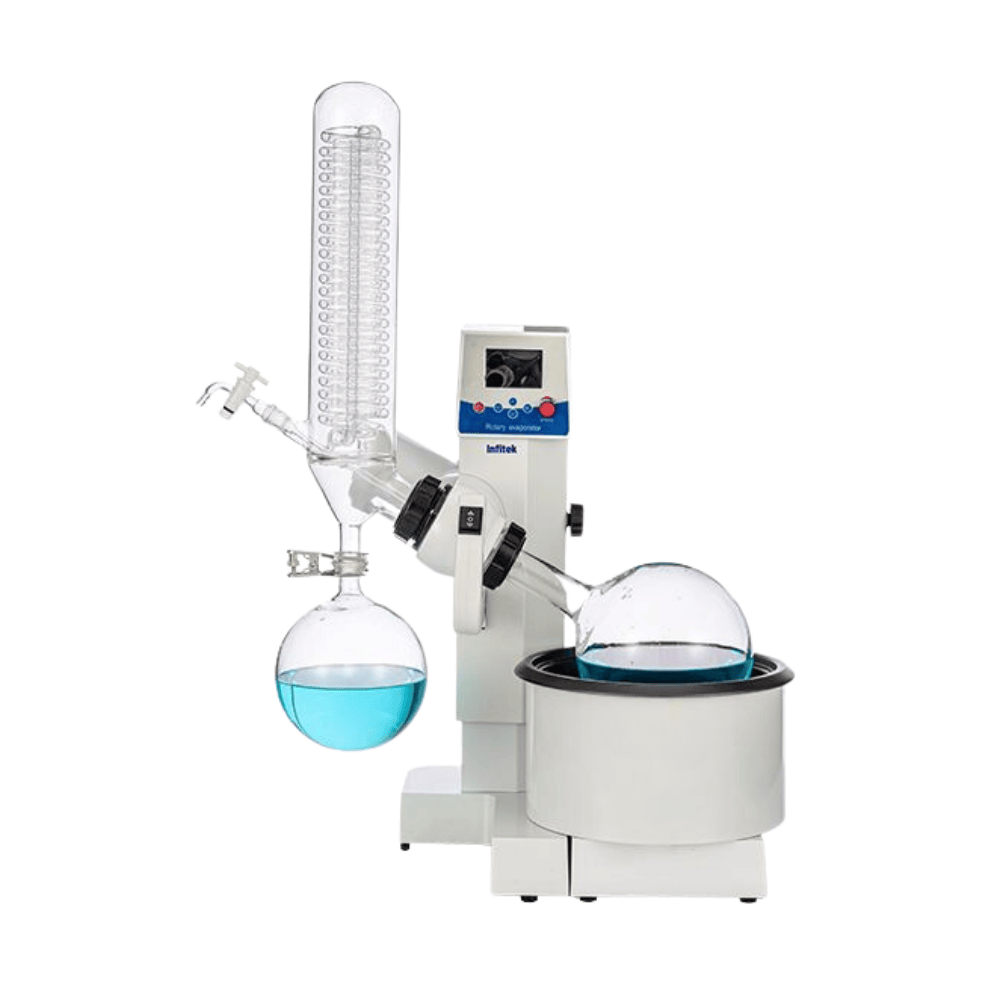

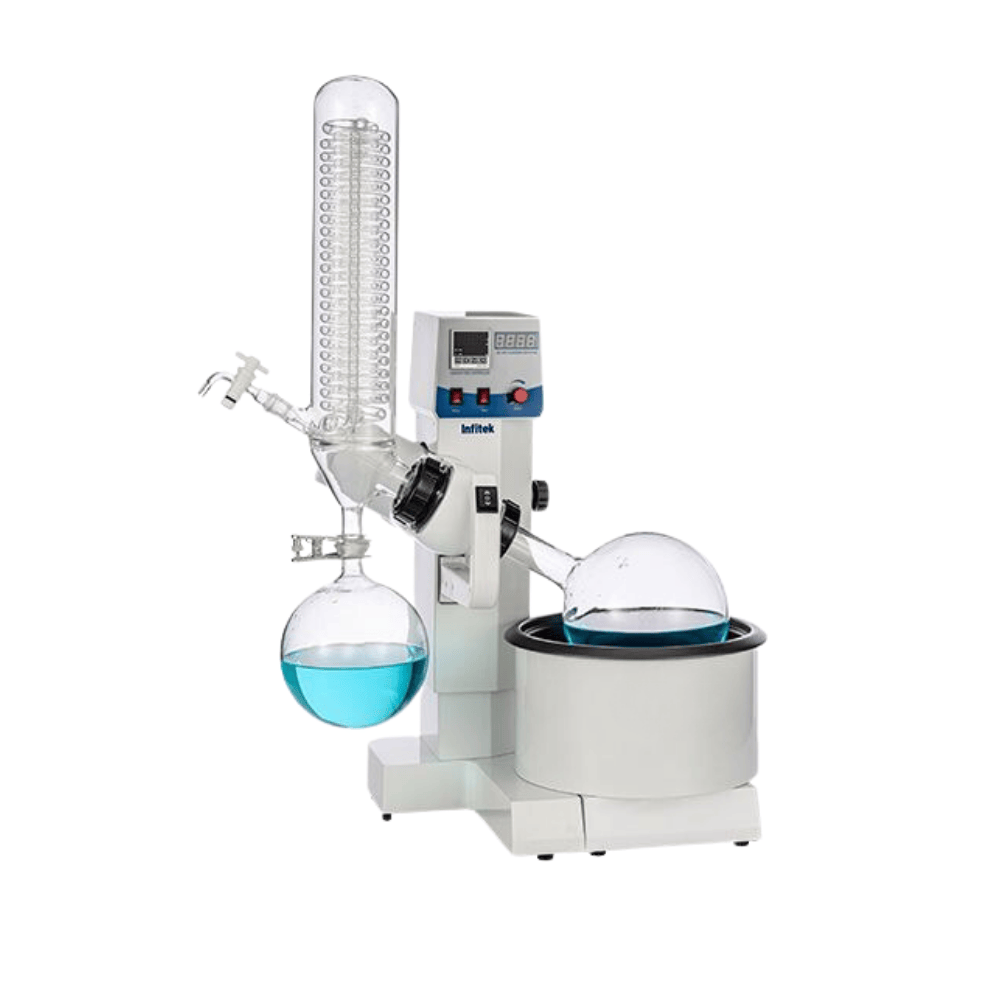

Rotary Evaporator, CA-REV-3000 Series
- Rotation Speed: 0~200 RPM
- Temperature Range: RT ~99℃
- Lift Mechanism: Automatic
- LCD digital display
Description
Introduction
The motor of CA-REV-3000series has 0-200rpm step-less speed regulation and automatic lifting function, the main body uses the aluminum alloy material, smooth, safe, and beautiful. The revolving body consists of a set of stable and reliable micro motors, speed motors and integrated circuit control devices.In the role of electronic speed, it can be rotated stably in the 0-200rpm range.
Characteristics
REV-3000A: temperature digital display
REV-3000B: temperature and speed dual-digital display
REV-3000C: temperature and speed LCD display
Specifications
| Model | CA-REV-3000A | CA-REV-3000B | CA-REV-3000C |
| Screen | Temperature digital display | Temperature and speed dual-digital display | Temperature and speed LCD display |
| Glass material | GG-17 | ||
| Stent material | Aluminium alloy | ||
| Bath material | Teflon composite pot, fully enclosed heating,
φ255mm*H155mm |
||
| Rotary flask volume | 3L, standard mouth | ||
| Collecting flask volume | 2L, ball mill mouth | ||
| Rotary power | Brush motor 40W brushless motor | ||
| Rotary speed | 0~200rpm | ||
| Heating power | 1.2kW | ||
| Temperature control of bath | Room temperature~99℃ | ||
| Temperature precision | ±1℃ | ||
| Elevating power | 20W | ||
| Elevating stroke | 120 mm | ||
| Voltage/Frequency | 220V/50Hz | ||
| Exterior Dimension (W*D*H)(mm) | 690*490*830 | ||
| Package Dimension (W*D*H)(mm) | 640*640*500 | ||
| G.W.(kg) | 27 | ||
| Supporting products | REV-3000A/REV-3000B/REV-3000C+Water Circulating Vacuum PumpVACP-WC3Y+Low Temperature Circulator RECL10-5 | ||
